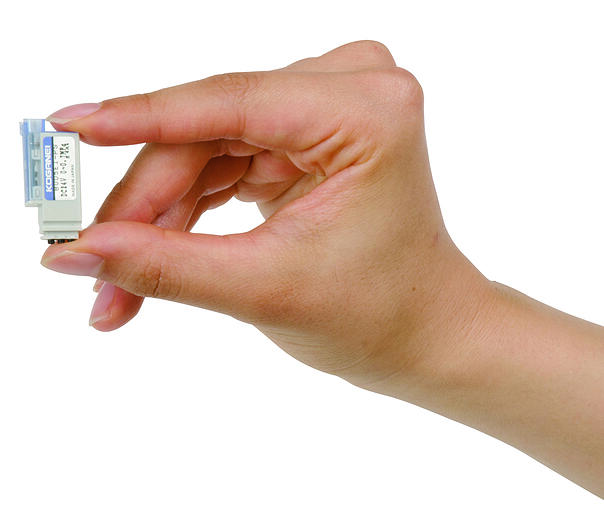

The world’s smallest solenoid air valve is now available from Koganei! The NEW Micro 3-port Solenoid Valve (labeled the 005 Series) is uses an innovative solenoid technology, measuring only 5.9mm wide with a low mass of only 4.5 grams.

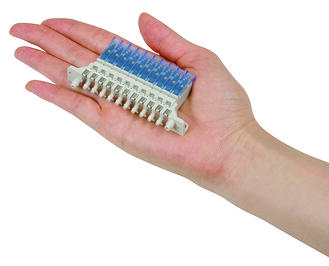

With Base Piping or Split-Type Manifold valves available, you have multiple mounting options to meet your exact needs. The uniquely designed Split-Type manifold allows you to make changes to your overall manifold assembly quickly and efficiently. The integral barbed ports allow you to add or subtract valves based on your immediate needs which makes the 005 Series Micro 3-port Solenoid Valve the new best choice for device and equipment miniaturization particularly in the bio-tech, analytical, and semiconductor equipment market segments.
Power consumption 0.5 watts- Very small footprint.
- Sub-base or manifold mounting, up to 20 station
- Operating pressure 0-102 PSI
- Flow: Cv= 0.006
- Barb fitting for 1/8" or 5/32" ID tubing
