Custom Bimba-Pneumadyne Solution - This post is brought to you by Bimba Solution Shop. Contact us if you would like Bimba to look closer at your application.
Challenge
Adjustable air suspension has become an important feature in the manufacturing of motorcycles. Several companies have contacted Pneumadyne for pneumatic components that can inflate and deflate the shocks on their bikes. While the circuitry is often different, many of the application requirements remain the same.
Requirements:
- Valve assembly must withstand vibration, heat and weather
- Limited space is available for installation
- Valves must accommodate high pressure
Solution:

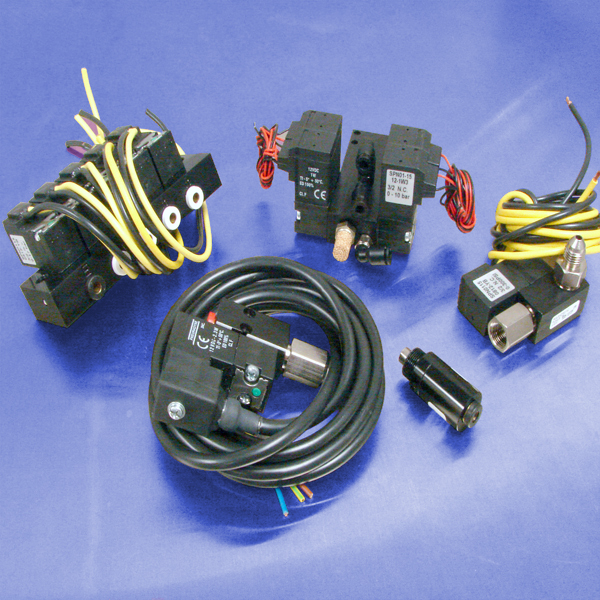

With miniaturization and integration as the goal, Pneumadyne engineers focus on the base for our 15mm solenoid valves. Incorporating a check valve, push-to-connect cartridges or 1/8 NPT (F) fittings into the base decreases the number of potential leak points and greatly reduces the size of the valve assembly. Many of the air suspension valves developed by our engineers also share the following features:
- 300 psi solenoid valves
- Epoxy sealed connectors for moisture resistance
- Compact and rugged designs
- Built-in check valves to hold system pressure
Other Applications:
- Medical
- Palletizing
- Conveying
Learn more about Pneumadyne products or contact us to discuss an application.
