Problem in Gas Assist Injection Molding

Gas assist injection molding is a commonly used process to make plastic parts today. It allows parts to be light weight and more sturdy than solidly molded parts. Plastic is injected into the mold followed by high pressure gas to force the plastic to the outside of the mold. The end product is a part that is hollow inside.

Several years ago a customer contacted Proportion Air for help in this molding process that he was perfecting. The customer wanted to proportionally control pressure by adjusting his command signal from his PLC (Programmable Logic Controller) to Proportion Air's electronic high pressure regulator. He needed pressure to be as repeatable as possible and he wanted to work up to 5,000 psig. The media used was nitrogen.

Solution in a High Pressure Regulator

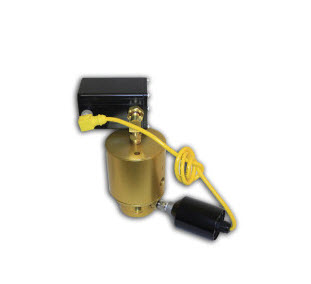

Proportion Air recommended their electronic high pressure regulator assembly. This consisted of the QB2 dual loop pressure controller assembled to an RG1262 45:1 ratio loaded high pressure regulator. They added a DSTY5000 external pressure transducer to the gauge port of the RG1262 regulator. The DSTY measured downstream pressure and its 0-10Vdc output signal was taken back into the QB2. The QB2 was calibrated 0 to 111 psig to account for the ratio. This assembly provided closed loop control all in one package.

The QB2 compared the command signal of the customer’s PLC with feedback from the DSTY and the customer was able to achieve a repeatability of +/-0.25 percent of full scale.

Total Benefits Achieved

Along with repeatability, the customer reaped these additional benefits with the electronic high pressure regulator:

• The QB2, RG1262 and DSTY5000 assembly was a relatively low cost high pressure solution.
• The assembly foot print was relatively small.
• The QB2 analog monitor signal was available to use to see the actual pressure downstream of the RG1262. This monitor which came from the DSTY5000 allowed him to verify that each part pressure was the same every time.
• Since the QB2 was a total closed loop package, PLC programming was easy. No PID loops needed to be tuned. The programmer programed the PLC to adjust its command output to the actual pressure required. The QB2 did the work; it can track a ramped commanded pressure increase or decrease.
