Custom Valve Assembly Replaces Three Devices in a Medical Operatory

Custom Bimba Solution - This post is brought to you by Bimba Solution Shop.

Challenge:

A manufacturer of medical equipment contacted Pneumadyne engineers to design a system that would combine the functions of several individual operatory devices into one convenient package. Our customer had already established the application requirements and overall package size but needed help with the pneumatic circuitry.

Requirements:

• Condense three circuits into one component
• Meet specific flow and pressure requirements
• Reduce the size of the circuit to fit the space constraints of the operatory equipment that the customer had already designed
• Pneumadyne Engineers had to work within an extremely tight time line which required weekly web-based meetings with several domestic and international offices
• Several components within the device had to be able to withstand an autoclave

Solution:

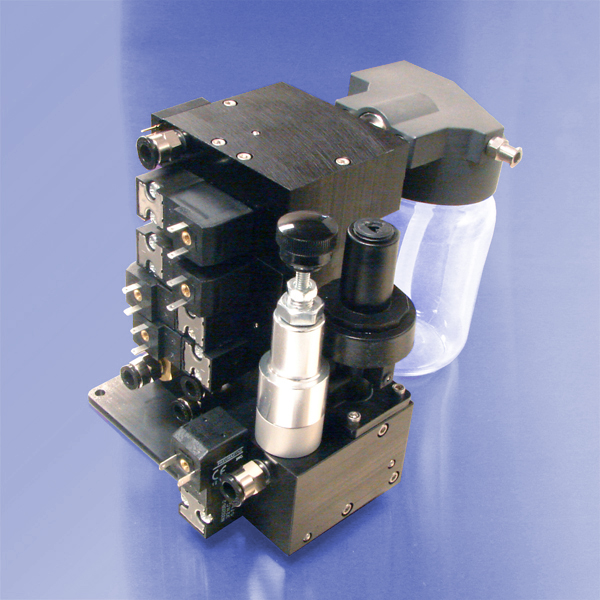

Pneumadyne engineers were able to meet the customer’s strict time line and develop an integrated manifold block that contains three separate circuits and fits the space allowed in the customer’s equipment. This multi-function assembly allowed the customer to replace several devices within an operatory.

• A regulator pre-set at 7.5 psi supplies pressure to a water chamber
• A separate valve within a plastic cap shuts the flow of water off between uses
• Four pressure transducers provide an electronic interface for the measurement of system flow and pressure
• All five solenoid valves are oxygen cleaned
• Special tests were developed and performed to ensure that the device met the customer’s flow and pressure specifications
